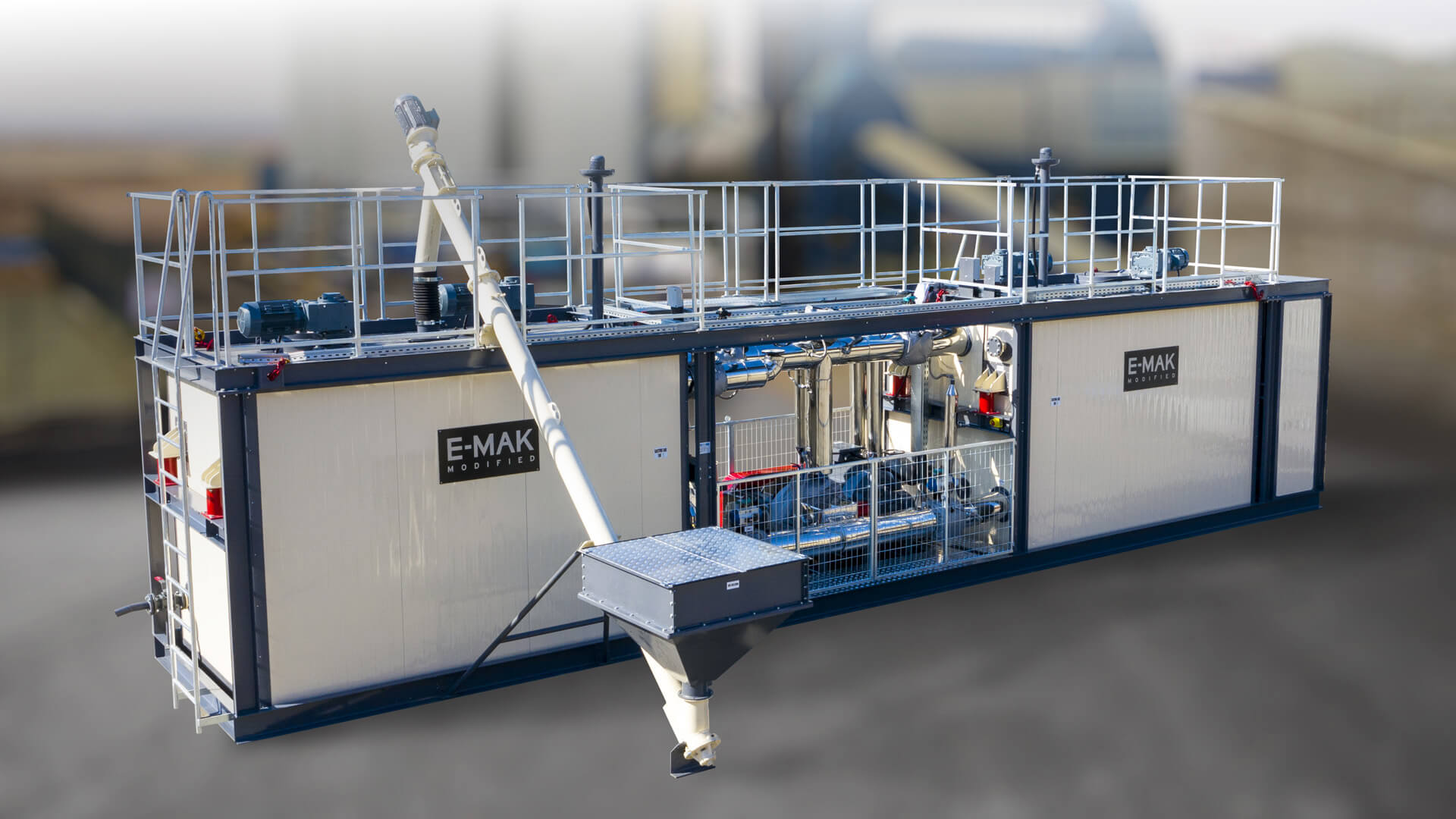

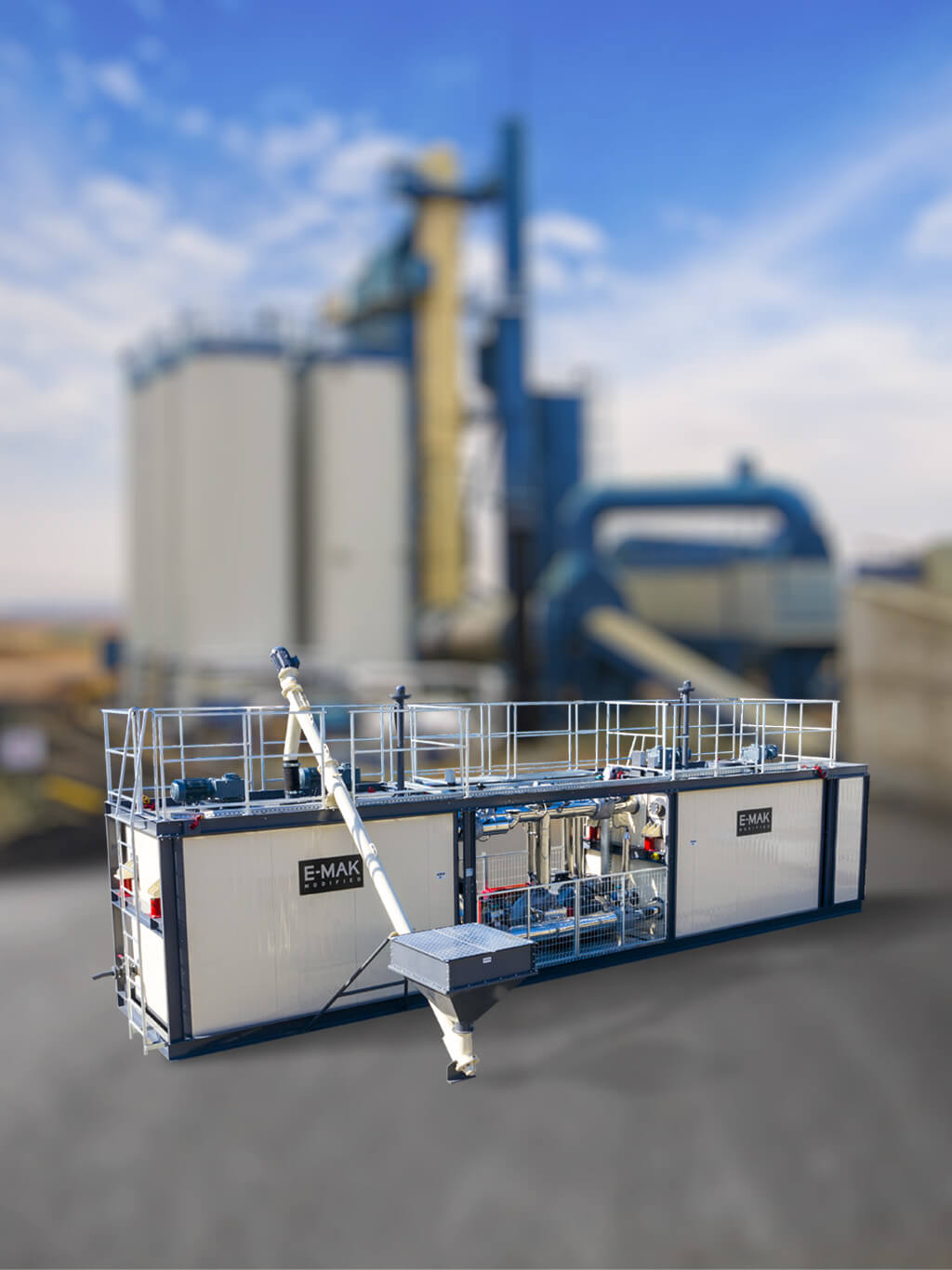

E-MAK PMB series modified bitumen production plants have a capacity of 15 tons/hour and they grind the polymer (SBS, APP, etc.) and bitumen into homogeneity.
Modified Bitumen (PMB) Plant is the ideal solution for all road projects due to its high mill performance, compact design, ease of use, and economical features. With its high production capacity, it fully meets the needs of applications such as highway, railway, and airport projects in all areas where modified bitumen is used. Polymer modification is necessary to increase the performance of the bitumen used on roads, planes, and racetracks to increase product life and reduce maintenance costs. For high-quality PMB, there are 4 important aspects that should be taken into consideration. These are; bitumen quality, mill performance (using a powerful and fine mill is important), polymer suitability, and resting the final product in tanks by mixing it. The plant is specially designed to be able to modify bitumen up to 8-20 t / h with the polymer.
The "E-MAK PMB" series modified bitumen production facilities have a capacity of 15 tons/hour and they grind the polymer (SBS, APP, etc.) and bitumen into homogeneity. All equipment used in the "E-MAK PMB" series modified bitumen production plants have been selected to provide durability and high efficiency. It is environmentally and budget-friendly.
Besides the easy transportation which its special design provides, “E-MAK PMB” is easy to install and maintain.
It is resistant to 220 ° C and has a pumping capacity of 20t / h. It has a 160 kW Polymer Modified Mill.
Insulated with 100 mm rock wool, it is manufactured to contain a container. It has a 10 m³‘ (working capacity 6m³) vertical mixing tank with a hot oil serpentine pipe heating, a 22 kW mixer.
Horizontal type, 10m³ volume, 400 lt internal serpentine tube, hot oil heated (28m²), insulated with 100 mm rock wool, manufactured to contain the container. Their upper surface is made of a 3-4 mm diamond sheet.
There are 4 stainless steel heating tanks with load-cell connection with a capacity of 5000 kg.
> Bitumen pump with 50 t / h capacity, 15 kW.
> Weighing chamber with 500 x 500 mouth opening, 2m3 load cell, and 30m3 / h capacity spiral Polymer Modified Granule (SBS) feeding unit.
> Hot oil jacketed bitumen valves and filters.
> Double Control System: Semi-Automatic - PLC controlled fully automatic.
> All valves used in the system during all operations can be controlled from the operator panel through pneumatic actuators.
> The temperature of the mixing tanks is monitored digitally and manually, the weight by load cells, and the temperature of the mill digitally.
> Possibility of easy transportation and installation to the desired location thanks to the electrically heated system.
> Universal design: there are piping inlets and spiral connection points on both sides of the plant. In this way, it does not cause any problem whether the bitumen tanks are on the right or left of the facility.
> Possibility to be shipped with 1 container.
